Laser Application TFT-LCD Laser Repair System (Array. Cell. Module)
Laser Application

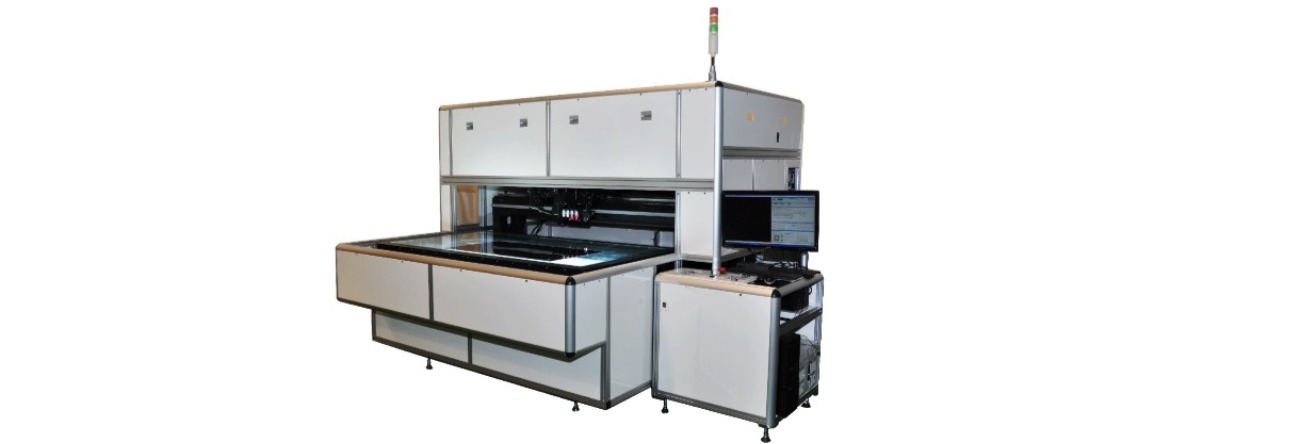

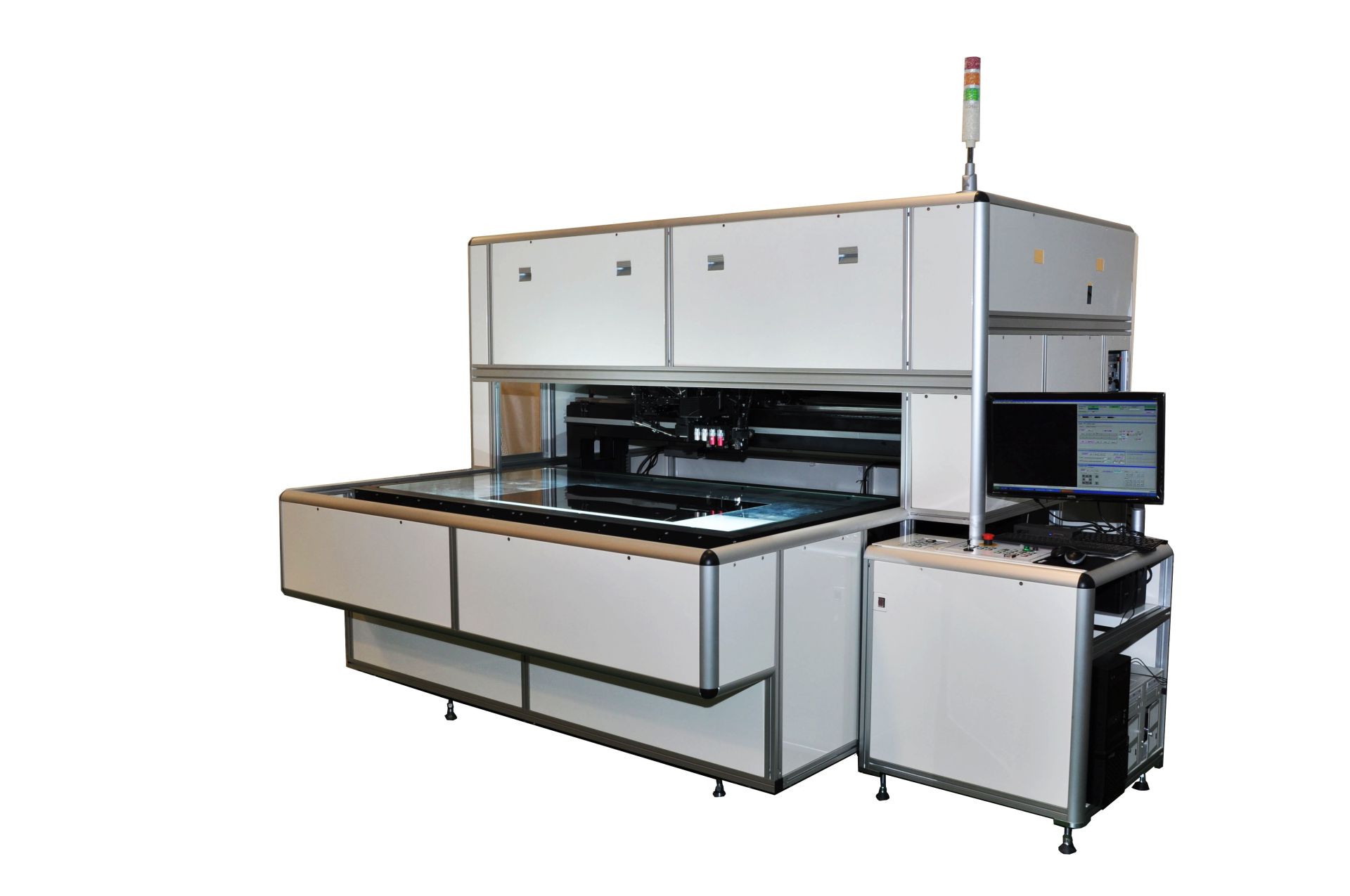

TFT-LCD Laser Repair System (Array / Cell / Module)

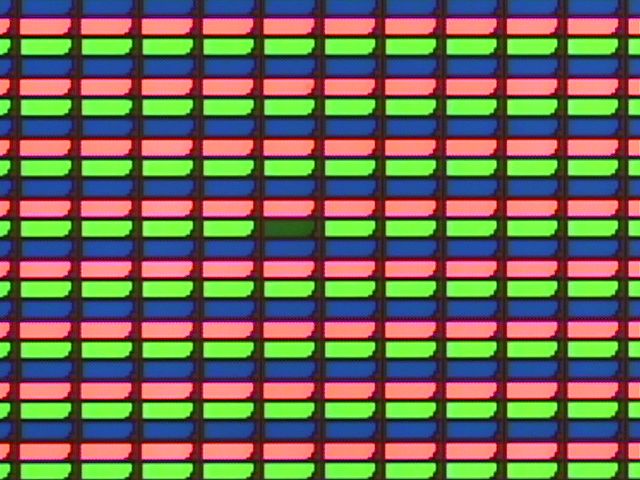

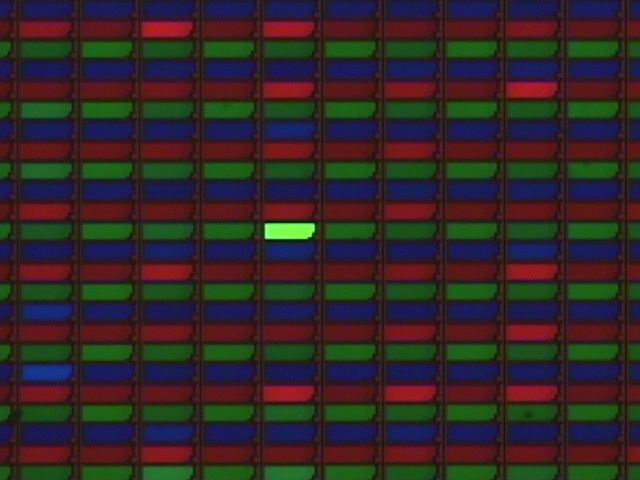

TFT-LCD Laser Repair

  • High precision laser optical system
  • Choice of various wavelengths: Nd YAG : 1064nm 532nm 355nm 266nm "
  • Minimum Laser repair size: 3 μm x 3 μm (2um *2um option)
  • Resolution on X、Y、Z-axis : 0.1um/ pulse
  • Repeatability on X、Y、Z-axis : 3um
  • Industrial microscope and high resolution CCD with linear type LLC
  • Semi-auto repair function
  • Real time auto focus , time ≦ 1sec. (Option)
  • Open defect repair system (Option)
  • Glass-bar type stage in combination with customers robot arm for workpiece feeding system (Option)
  • CIM system (Option)
